ROTTERDAM Produkte
Select your required product version here
ROTTERDAM 400

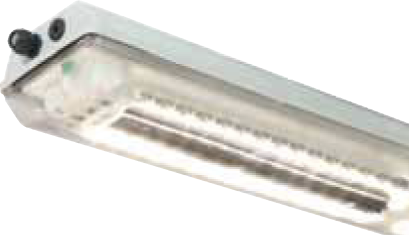

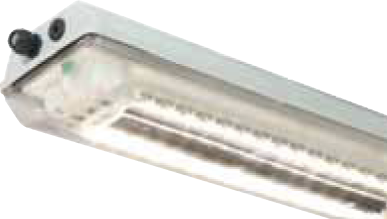

As an Ex linear luminaire, the ROTTERDAM has proven itself to our customers over the years as a reliable light fixture.
- Certified according to ATEX and IECEx
- LED upgrade kit available for Rotterdam with conventional lamps
- Applicable in Zones 1 and 2
Do you have special requirements? We would be happy to customise the ROTTERDAM according to your individual wishes. Please contact us!
Technical datasheet
Technical Data | ||||
Type: | LED Ex linear luminaire | |||
Material: | Glass fiber reinforced polyester in RAL 7035 with clear polycarbonate cover | |||
Housing color: | RAL 7035 | |||
IP protection class: | IP 66, IP67 | |||
Weight: | 6.9 kg±5% | |||
Environmental temperature: | -25°C to +55°C | |||
Electrical Data | ||||
Input voltage: | 230 V AC and 115 V AC at 50/60 Hz, 220 V DC | |||
Wattage: | Max. 29 W | |||
Lightning Data | ||||
Beam angle: | 120° | |||
Luminous flux: | 2,700 lm | |||
CCT (color): | 4,000 K, 5,700 K | |||
| Lifetime diode: | >110,000 hrs. | |||
Options
- Emergency light
- With cable
- Opal diffuser
- Also available as
conventional version
